Logisim
A graphical tool for designing and simulating logic circuit.

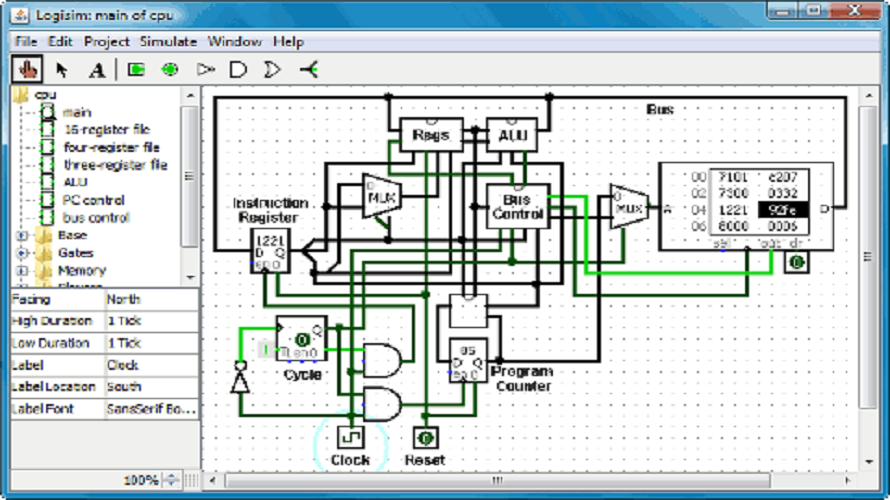

Logisim is an educational tool for designing and simulating digital logic circuits. With its simple toolbar interface and simulation of circuits as you build them, it is simple enough to facilitate learning the most basic concepts related to logic circuits. With the capacity to build larger circuits from smaller subcircuits, and to draw bundles of wires with single mouse drag, Logisim can be used (and is used) to design and simulate entire CPUs for educational purposes.
Licensing & Deployment
-
Windows
-
Mac
Knowledge Base
-
Help Guides
Logisim Core Features
Focus of Simulation Feature
- Design Analysis
- Dynamic Modeling
- Graphical Modeling
- Presentation Streaming
Logisim Pricing
Pricing Type
-
Free
Payment Frequency
-
Free
