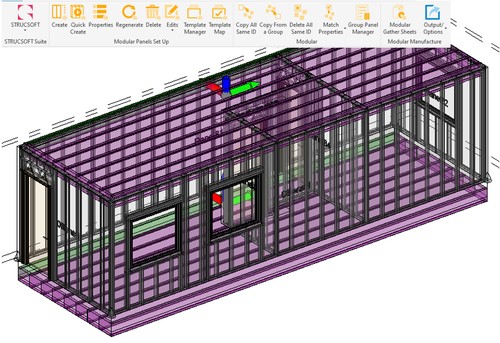

Strucsoft Metal

Strucsoft Metal is an Autodesk Revit plugin for light gauge steel (LGS) framing built for architects, engineers, contractors, and offsite manufacturers who need to design, document, and fabricate metal framing accurately and efficiently within the Revit environment.

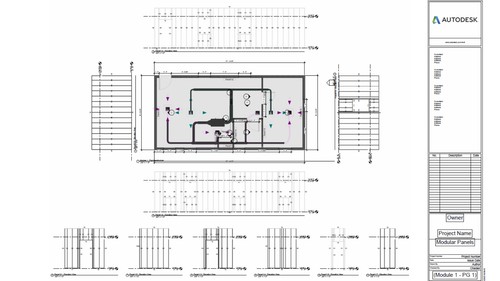

Automate the creation of wall panels, floor systems and ceilings using a rule-based template system to generate fully detailed framing across an entire project. The software automatically detects openings, MEP penetrations, and structural intersections and applies the correct framing conditions around each opening. Generate precise shop drawings, bills of materials, and cut lists directly within Revit, and prepare your models for CNC data export into roll-forming machines from manufacturers including Howick, Framecad, Scottsdale, and others.
