Every year, thousands of people lose money to telephone scams. The majority of these victims are elderly. Crimes against the elderly continue to skyrocket each year. One way to protect people from telephone scammers is by using telecom technology.

Request

To build a device that blocks fraudulent calls, Johannes Kinscher, a private entrepreneur, decided to use the capabilities of a Private Branch Exchange (PBX) system.

PBX is a private telephone network often used within an organization. The idea of this phone system is that it allows the use of different communication channels like Voice over IP, ISDN or analog for letting users communicate internally within their company as well as externally with the outside world. With PBX you can transfer calls, use voicemail and interactive voice menus, record calls, and make call queues. These features of the private telephone network make it a great solution for a fraud-blocking device. Johannes Kinscher was looking for experienced hardware engineers with specialized expertise in PBX programming.

Solution

Integra Sources was chosen to design PCB for a special device that helps avoid fraudulent calls. Our hardware development team implemented full-cycle printed circuit board design services from schematic design to prototyping assembly to testing.

Result

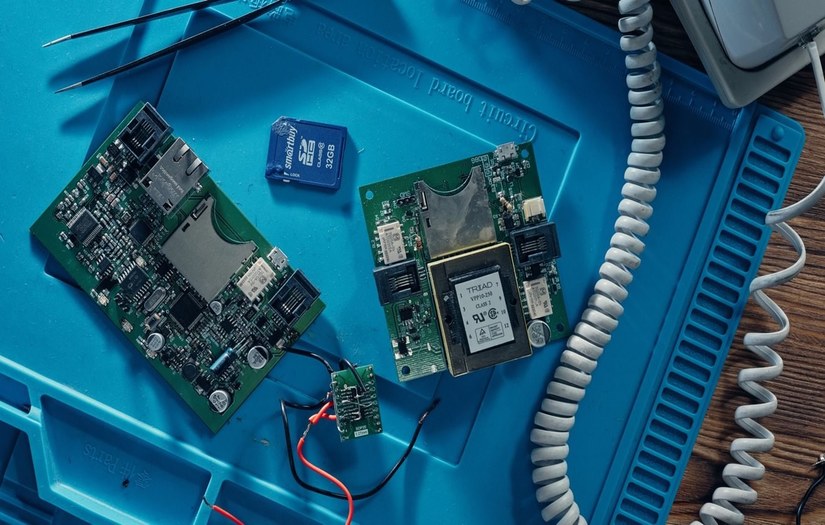

Our client received a ready-for-manufacturing PCB for the telecommunications device used to protect senior citizens from phone scams. The device works as a mini-PBX but with one subscriber line. It connects between PBX and a user phone and fully emulates a PBX port.

The device is small in size and powered by a conventional 5V micro USB adapter used to charge mobile phones. It provides access to Ethernet LAN through an embedded port, has 2M bytes Flash storage, and an external SD card connector. We installed a high-performance STM32F415 microcontroller on the PCB to provide the ability for data encryption/decryption on a hardware level.

How it works

The device gets installed in the homes of senior citizens and gives them more control over the calls they receive. It attaches to the Public Switched Telephone Network and automatically blocks fraud calls. It also warns consumers about phone spam and helps them manually block unwanted calls.

For example, a senior citizen can create a whitelist that includes individual numbers of people who regularly call and won't be blocked. They can also add unwanted numbers to a blacklist. For numbers which aren't included on any list and who haven't called before, the caller will have to record a short message which a senior citizen will hear when they pick up the phone. They can then decide whether or not to accept the call.

The functionality of the telecom device:

- Detect an incoming call

- Answer an incoming call

- Detect frequency-shift keying (FSK) modulation with caller ID information during an incoming call

- Catchline voice/tone signal for DTMF decoding and speech recording

- Play voice/tone to a phone line - Ring to a user phone (sine signal 35V RMS)

- Detect the picking up of a phone by a user

- Transmit caller ID to a user phone while ringing

- Make an outgoing call
